3D visualization

The parametric motor renders as a true 3D assembly via PyVista: rotor back iron, alternating N/S magnets, the slotted stator with copper coils, and the yoke. Every solid is built from the same AxialFluxMotor dimensions the physics models use.

Code: axfluxmdo.viz.pyvista_3d. Requires pip install "axfluxmdo[viz3d]".

Construction: exact annular sectors

Every component is one primitive: a closed hexahedral annular sector built as a structured grid over a numpy \((r, \theta, z)\) vertex lattice. Full rings are 360° sectors; magnets, teeth, slots, and the cutaway are partial sectors. Vertices lie exactly on the bounding circles, so bounds are exact and mesh volumes are meaningful: the test suite checks each component's .volume against the motor's analytic volume properties, which agree to better than 0.1%. VTK boolean operations are not used.

from axfluxmdo.viz import plot_motor_3d, animate_rotation, animate_exploded

plot_motor_3d(motor, show=True)             # interactive cutaway view
animate_rotation(motor, "rotation.gif")     # one full mechanical revolution
animate_exploded(motor, "exploded.gif")     # stack separates and reassembles

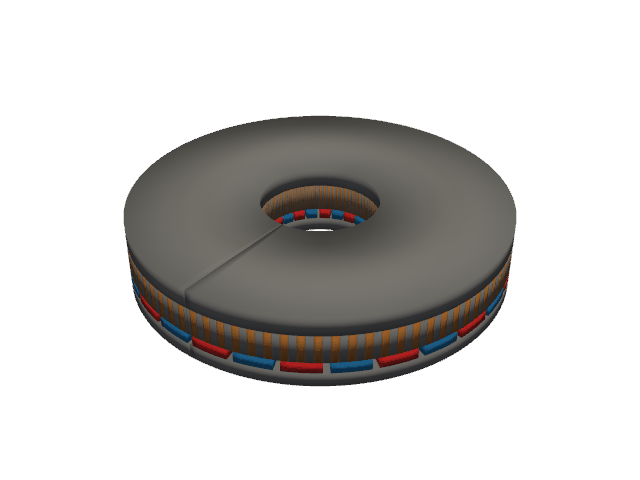

Spinning rotor Exploded assembly

Conventions worth knowing

  • The cutaway wedge removes stator-side material only, because slicing the rotor would cut through a moving part mid-animation.
  • Animations are GIF-only. GitHub and this site render GIFs inline; MP4 would add a binary ffmpeg dependency without documentation benefit.
  • can_render() probes for a usable GL context in a subprocess (VTK segfaults rather than raises without one); mesh construction works everywhere, rendering degrades gracefully on headless machines.
  • The committed GIFs are regenerated locally via example 08; CI smoke-runs the example under xvfb.
